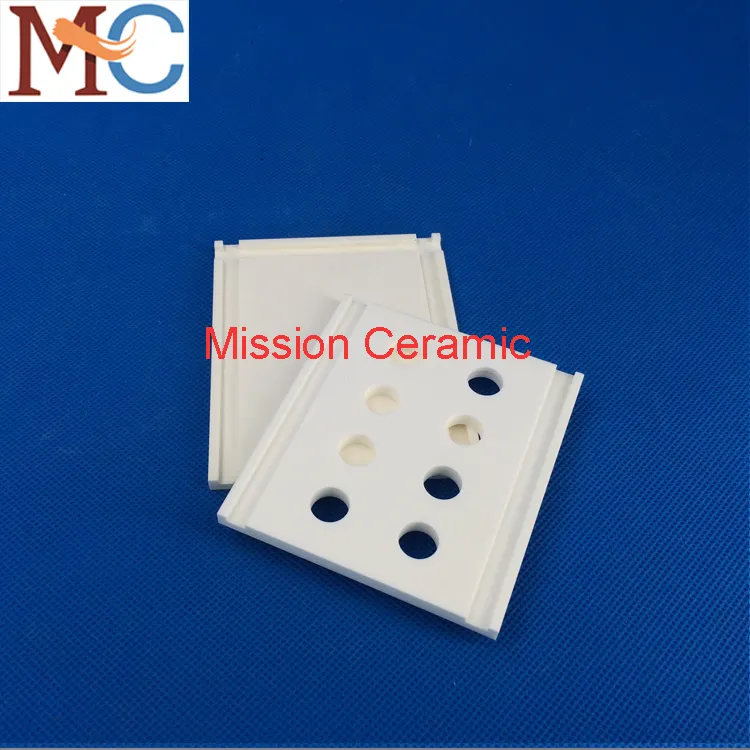

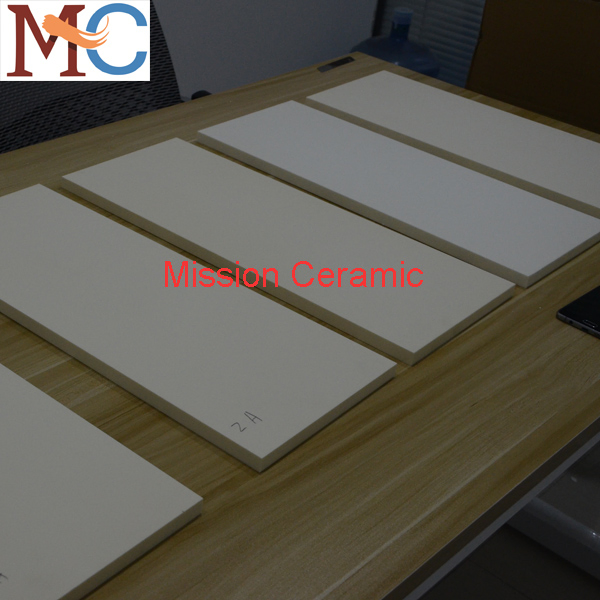

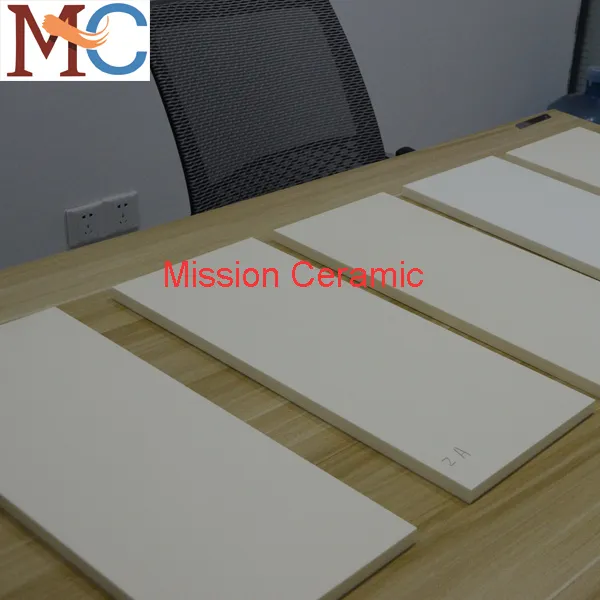

Customize High Temperature Industrial 95% 99% Al2O3 Alumina Ceramic Plate

Basic Specifications

Model NO.:MSAP

Color:White, Ivory

Size:Customize

Max Temp:1800°C

Usage:Wear Resistance

Density:3.6 - 3.9 g/cm³

Delivery:3-30 Days

Type:Ceramic Plates

Package:Wooden Box

Origin:China

Capacity:100,000,000 Pcs/Month

Product Description

High-quality industrial ceramic products specializing in 95% and 99.7% Al2O3 alumina ceramic plates. These products feature densities ranging from 3.6g/cm³ to 3.9g/cm³ and are manufactured using advanced casting, dry pressing, and ISO pressing methods to suit diverse industrial applications.

Key Advantages

✓

High Purity Materials: Available in 95% Al2O3 (3.6g/cm³) and 99.7% Al2O3 (3.9g/cm³).

✓

Precision Machining: Tight tolerances of up to +/-0.002mm and surface roughness Ra0.1um.

✓

Strict Quality Control: Every single plate undergoes rigorous inspection before shipment.

✓

Service Warranty: Free replacement for shipping damage (if arranged by us) or tolerance discrepancies.

Technical Data

Al2O3 Purity (%)	Density (g/cm³)	Bending Strength (Mpa)	Expansion (X10⁻⁶/ºC)	Thermal Conductivity (W/(m.R))	Dielectric Strength (kv/mm)	Max Working Temp (ºC)	Water Absorption (%)
95	3.60	364	7.6	20	11	1500	<0.2
99.7	3.90	450	8.0	35	12	1800	<0.1

Available Dimensions

Thickness: 0.5mm to 50mm
Width: 5mm to 500mm
Length: 5mm to 600mm

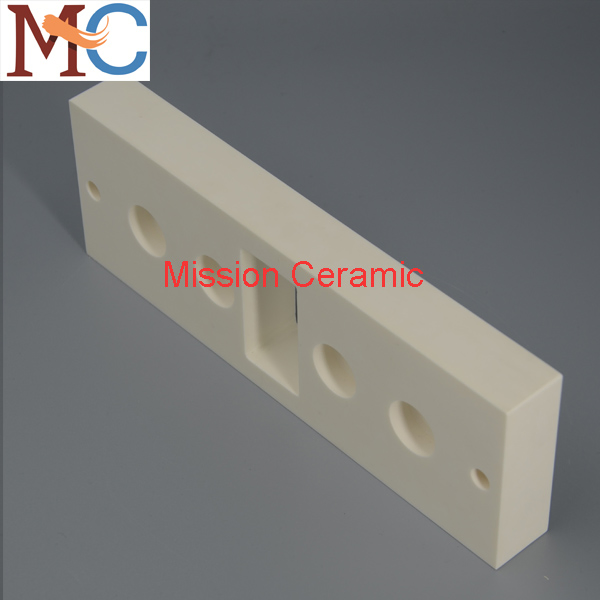

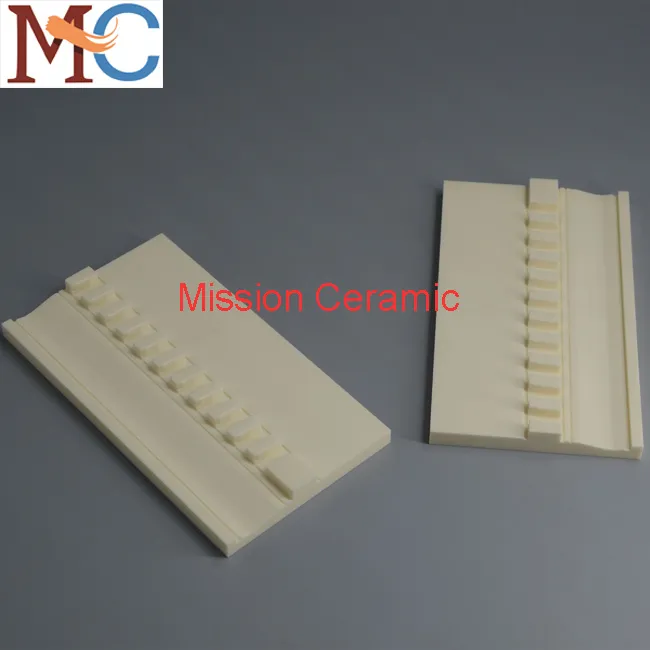

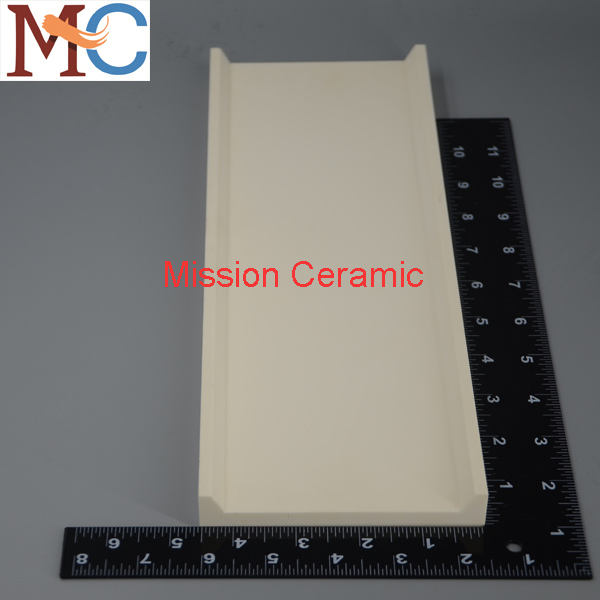

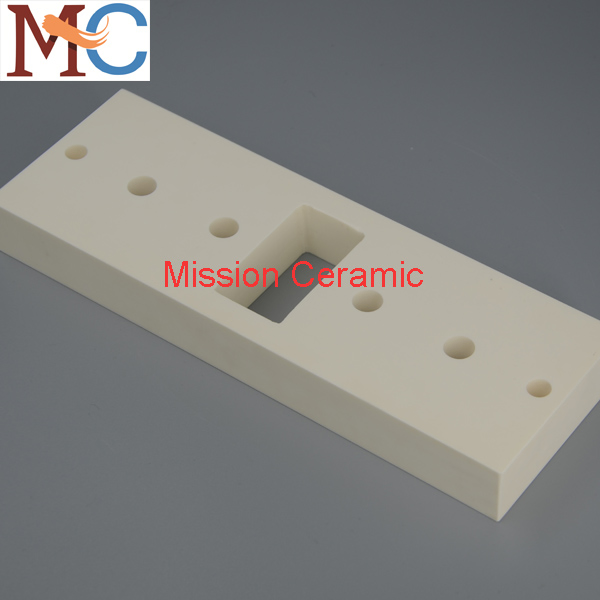

Special shaped plates can be manufactured according to specific requirements.

Package and Shipping

Products are securely packed in wood boxes or reinforced cartons to ensure safety during transit. Shipping options include Sea, Air, and Express delivery.

Advanced Ceramic Solutions

Specializing in the advanced ceramic and thermal industry with exports to over 40 countries including the USA, UK, Russia, France, Australia, and Korea. Our comprehensive product range includes:

• Alumina tubes, rods, and crucibles

• Zirconia ceramic components

• Silicon carbide beams and plates

• Boron nitride custom parts

• Alumina ceramic fiber boards

• MoSi2 and SiC heating elements

Frequently Asked Questions (FAQ)

1. What is the maximum temperature these alumina plates can withstand?

The 99.7% purity alumina plates can withstand a maximum working temperature of up to 1800°C, while the 95% purity plates are rated for up to 1500°C.

2. Can you provide custom sizes or special shapes?

Yes, we specialize in customization. We can produce plates in thicknesses from 0.5mm to 50mm, and lengths/widths up to 600mm. Special shapes can also be machined based on your design.

3. What are the typical tolerances for these ceramic plates?

We offer extremely tight tolerances, reaching up to +/-0.002mm through precision machining. The surface roughness can also be reached down to Ra0.1um.

4. How is the product quality ensured during delivery?

We provide a warranty for breakage during shipment (if we arrange the shipping). All plates are packed in professional wooden boxes or cartons to prevent damage.

5. What is the production capacity and delivery time?

Our production capacity is approximately 100 million pieces per month. Delivery times typically range from 3 to 30 days depending on the order complexity and stock availability.

6. What primary materials are available for these plates?

We mainly offer two grades: 95% Al2O3 with a density of 3.6g/cm³ and 99.7% Al2O3 with a higher density of 3.9g/cm³.
